KH-10K-LSM

KH-10K-LSM
KH-10K-LSM

KH-10K-LSM

Get Best Price

Technical Specifications
Discharge Type Top/Bottom/ Side
Air Flow(CMH/CFM) 18000/10000
Noise dBA 62
Motor Power(KW/HP) 1.1/1.5
Motor RPM 1460
Area Coverage(Approx) 700-900 Sq.Ft.
Power Voltage/Hz 220/415/50 Hz
Speed Type Single/Multi- Speed
Controller Type Manual/PCB/VFD
Colling Pad Type Cellulos Nordic Paper 5MM
Pad Size(LxHxW) 750X840X100
Tank Capicity 120 Ltr.
Pump Power(KW) 40 W
Drain Type Manual/Auto
Dimension (LxWxH)MM 1080X1080X950
Net Weight(Kg)Approx 120
Dust Filter Yes
Cooling Efficiency 85%
Cooling Pad Surface Area(Sqm) 1.98
Cabinet Material GI Steel
Static Pressure 180
Duct Lenth(Ft) Up to 50
Discharge Type Top/Bottom/ Side
Air Flow(CMH/CFM) 18000/10000
Noise dBA 62
Motor Power(KW/HP) 1.1/1.5
Motor RPM 1460
Area Coverage(Approx) 700-900 Sq.Ft.
Power Voltage/Hz 220/415/50 Hz
Speed Type Single/Multi- Speed
Controller Type Manual/PCB/VFD
Colling Pad Type Cellulos Nordic Paper 5MM
Pad Size(LxHxW) 750X840X100
Tank Capicity 120 Ltr.
Pump Power(KW) 40 W
Drain Type Manual/Auto
Dimension (LxWxH)MM 1080X1080X950
Net Weight(Kg)Approx 120
Dust Filter Yes
Cooling Efficiency 85%
Cooling Pad Surface Area(Sqm) 1.98
Cabinet Material GI Steel
Static Pressure 180
Duct Lenth(Ft) Up to 50
Tank Capicity 210 L

Key Benefits

High static air pressure and long distance air delivery . High efficiency Honey Comb Cooling Pads with higher saturation levels.
Heavy duty Submersible type water pump for continuous water supply Non-clogging type water distributor to ensure uniform flow of water over pads.

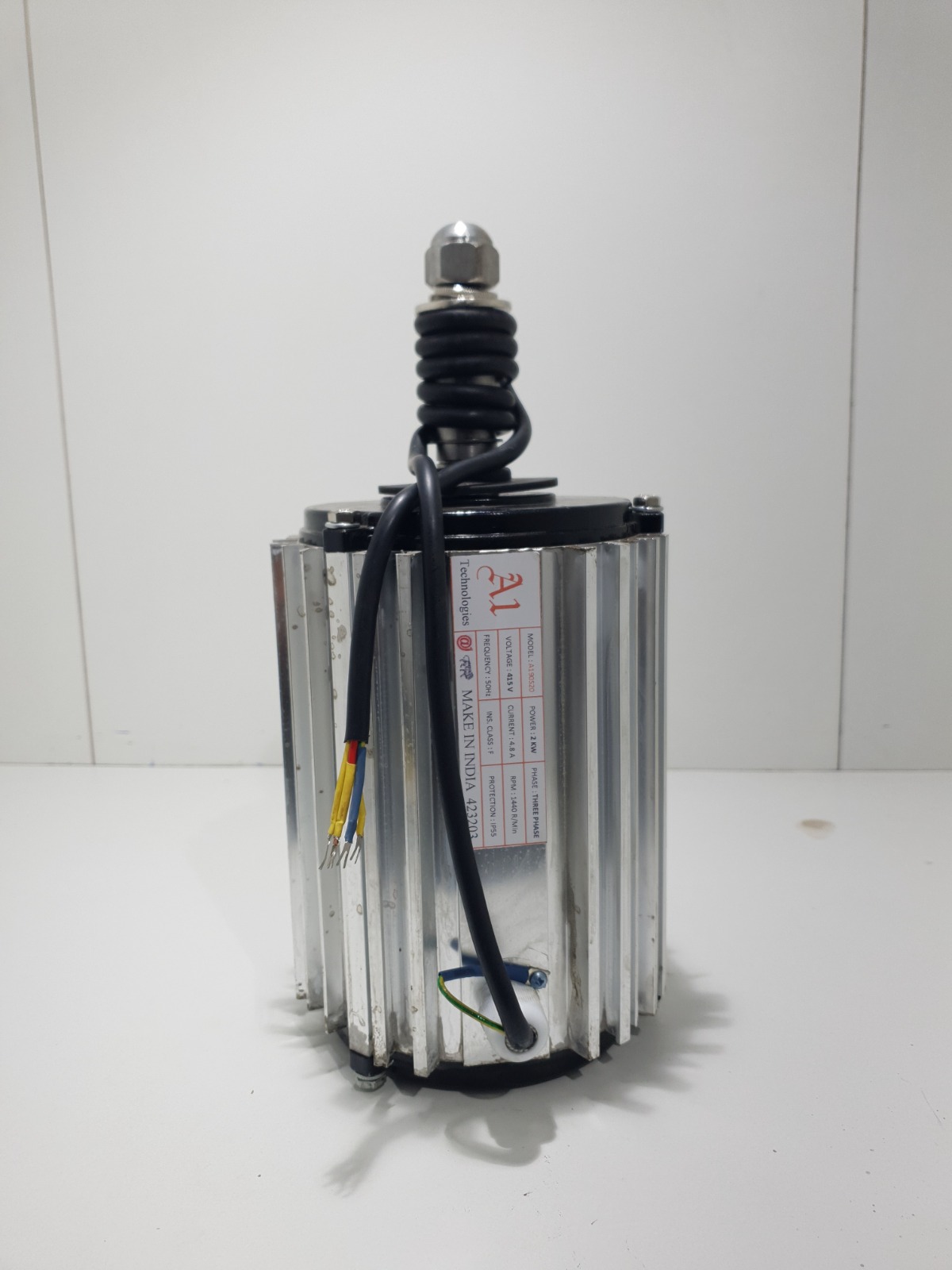

100% copper wounded electric motor for durability and Aluminium casing to ensure fast heat dissipation. Unique design of blades offers maximum air flow & minimum noise. Made of electroplated, rust free metal and heavy duty industrial polypropylene
Easy to Operate and Maintain. Pre-dust filters to ensure dust free fresh air and longer life of pads.
High static air pressure and long distance air delivery . High efficiency Honey Comb Cooling Pads with higher saturation levels.
Heavy duty Submersible type water pump for continuous water supply Non-clogging type water distributor to ensure uniform flow of water over pads.
100% copper wounded electric motor for durability and Aluminium casing to ensure fast heat dissipation. Unique design of blades offers maximum air flow & minimum noise. Made of electroplated, rust free metal and heavy duty industrial polypropylene
Easy to Operate and Maintain. Pre-dust filters to ensure dust free fresh air and longer life of pads.
Enhanced Indoor Air Quality Removes dust, fumes, and odors.
High static air pressure and long distance a delivery 100% copper winding for enhanced durability.
High Efficient Cooling Technology Eco friendly operation technology working machine

Our Product's

Spare Parts Available

Product Features
