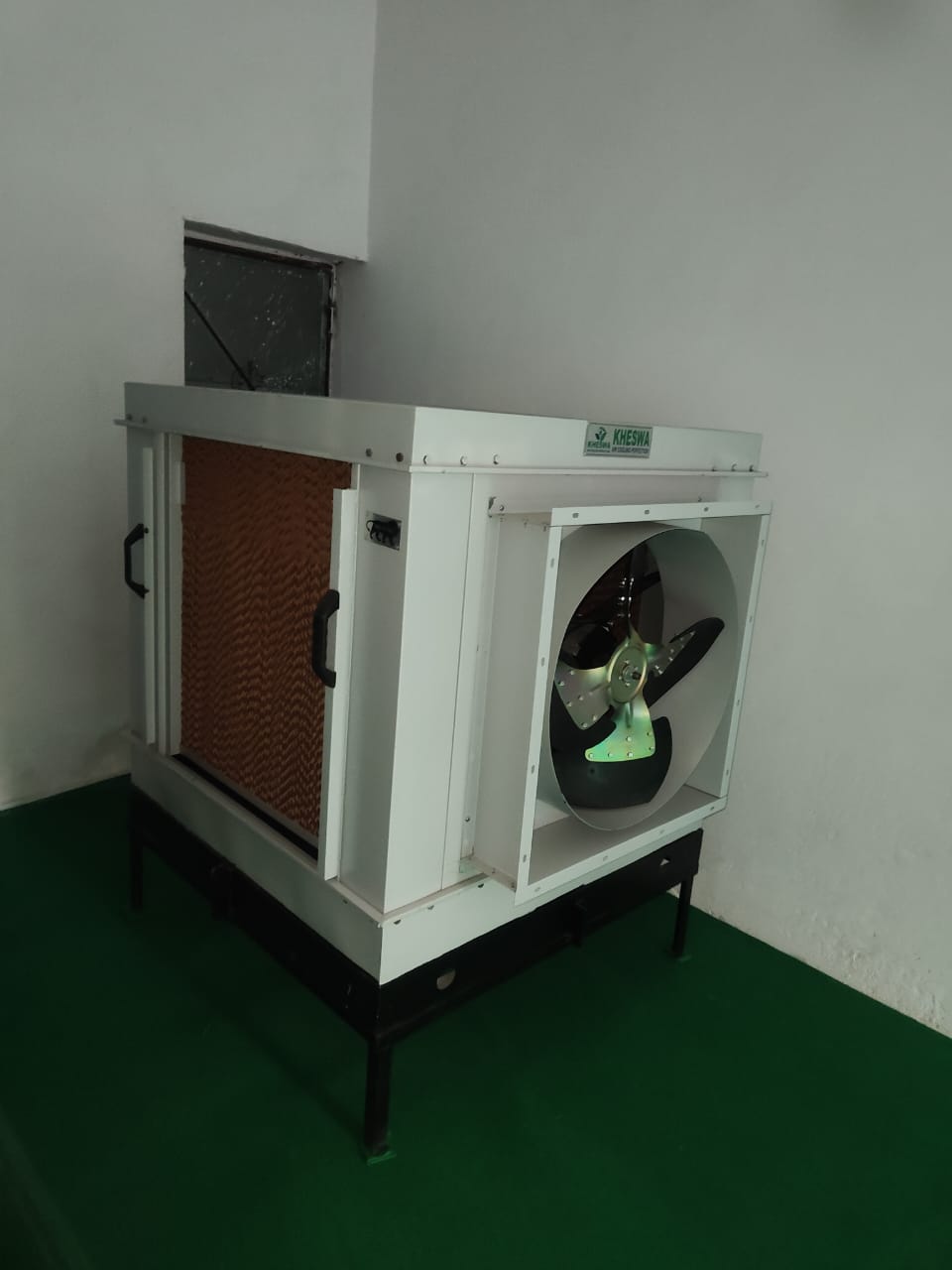

KH-15K-LSM
| Technical Specifications | |
|---|---|
| Discharge Type | Top/Bottom/ Side |
| Air Flow(CFM/CMH) | 12000/22000 |
| Noise(dBA) | 70-75 |

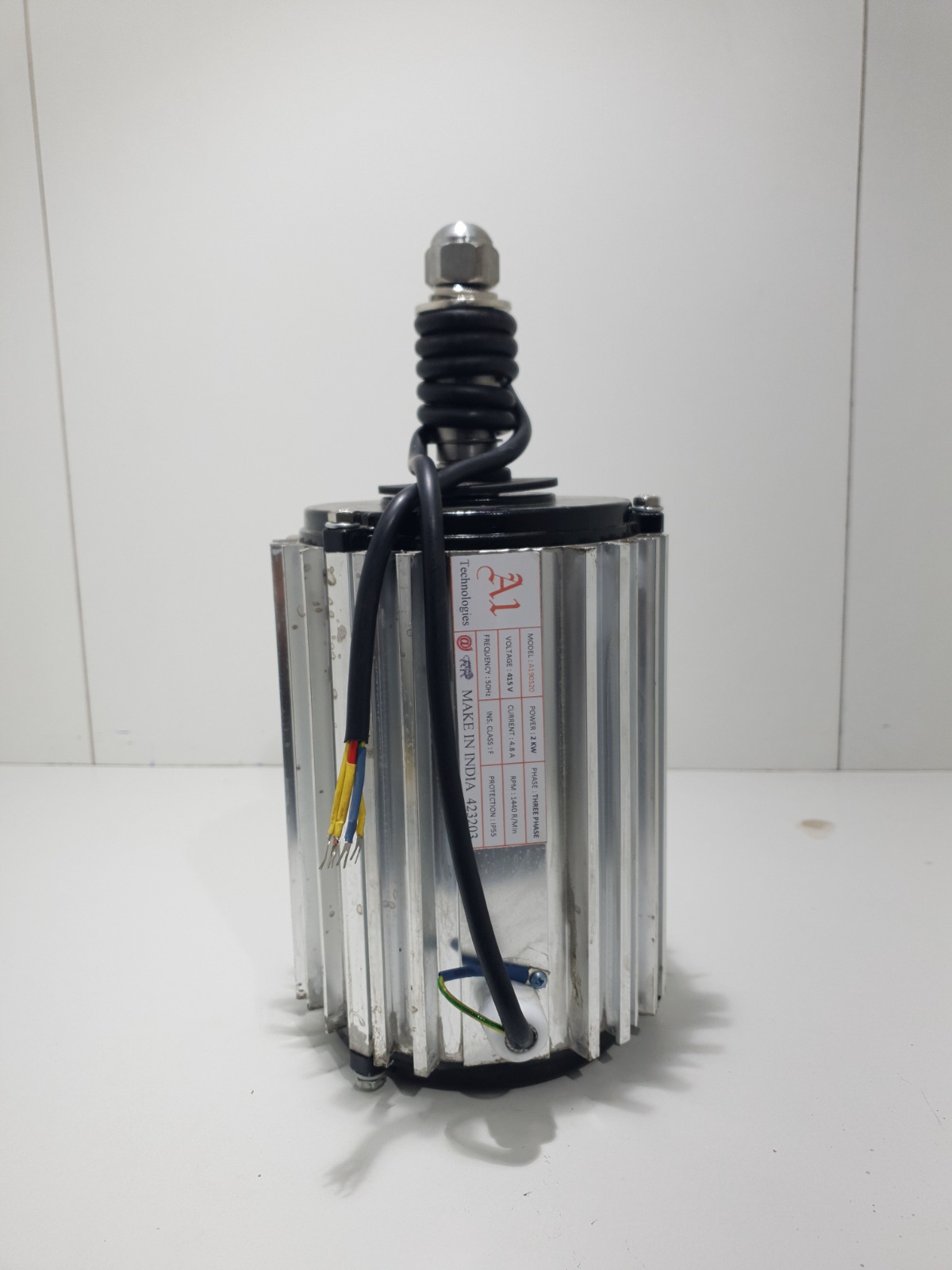

| Motor Power (KW/HP) | 1.5/2 |
| Area Coverage Approx | 1200 Sq.Ft. |
| Motor RPM | 1460 |
| Power Voltage/Hz | 220/380/50 Hz |
| Fan Type | Axial(4Blade) |
| Speed Type | Single/Multi- Speed |
| Controller Type | Manual/PCB/VFD |
| Pad Size(LxHxW)MM | 750X840X100 |
| Tank Capicity | 120 Ltr. |
| Pump Power(KW) | 40 W |
| Drain Type | Manual/Auto |
| Dimension(LxWxH)MM | 1080X1080X950 |
| Net Weight(Kg) Approx | 120 |
| Dust Filter | Yes |
| Cooling Efficiency | 85% |
| Cooling Pad Surface Area(Sqm) | 1.98 |
| Cabinet Material | GI Steel |
| Static Pressure | 250 |
| Duct Lenth(Ft)Approx | Up to 60 |
| Cooling Pad Type | Cellulos Nordic Paper 5 MM |
